Description

Design standard:API 6D, API 608, BS 5351, ISO 17292

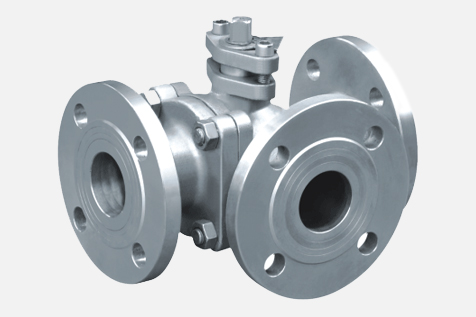

All the 3-Way Ball Valves supplied by SSIE are L type or T type, with blow-out proof stem

Product range:

• 1. Pressure range:CLASS 150Lb~2500Lb.

• 2. Nominal diameter:NPS 1/2”~24″.

• 3. Body material：Carbon steel, Stainless steel, Duplex, Alloy steel and special material.

• 4. End connection:RF, RTJ, BW, Hub.

• 5. Type of operation:Lever, Gear box, Electric, Pneumatic, hydraulic, Pneumatic-hydraulic device.

Product features:

• 1. Full bore or reduced bore.

• 2. Optional locking device.

• 3. Optional stem extension.

• 4. Optional ISO 5211 top flange.
