Description

Design standard:ASME B16.34, API 602

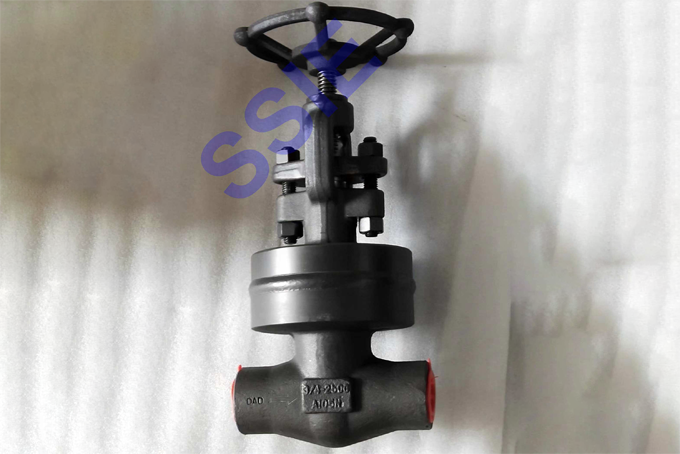

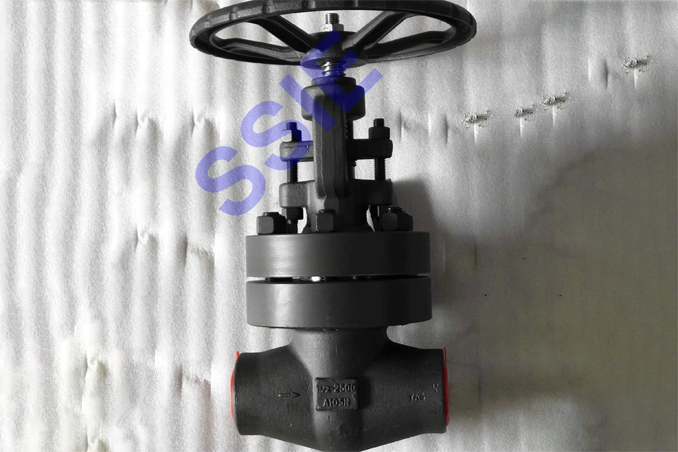

All the Forged Globe Valves supplied by SSIE are designed with integral seat, bolted bonnet, welded bonnet or pressure seal bonnet, rising stem or non-rising stem

Product range:

• 1. Pressure range:CLASS 150Lb~4500Lb.

• 2. Nominal diameter:NPS 1/2”~2″.

• 3. Body material：Carbon steel, Stainless steel, Duplex, Alloy steel and special material.

• 4. End connection:RF, RTJ, SW, NPT, BSP, BW.

Product features:

• 1. Max. CLASS 4500# for high pressure service.

• 2. Integral flanged ends as our standard, welded flanges as per required.

• 3. Optional non-rotary stem.

• 4. Optional ball type, parabolic disc.

• 5. Optional stem extension design.

• 6. Optional jacketed design.

• 7. Optional Bellow sealed design.

• 8. Optional screwed bonnet(union bonnet).
