Description

Design standard:ASME B16.34, BS 1873, DIN 3356

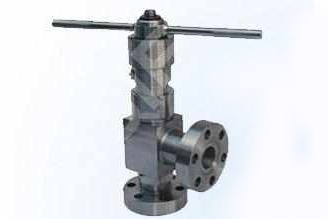

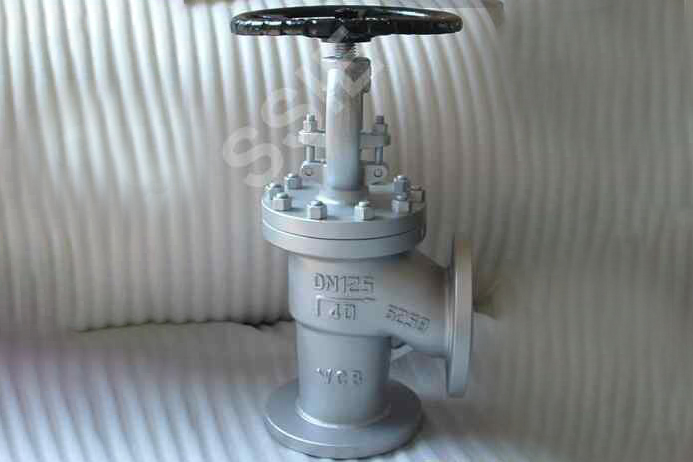

All the Angle Globe Valves supplied by SSIE are with Angle type body and are a kind of valve that the flow pressure will be against the valve seal, so valve has to be compulsively closed until the valve have sealed tightly. When valve is opening, the flow rate can reach maximum when disc is opened to 25% to 30% of its nominal diameter. Globe valve has very reliable cutoff function

Product range:

• 1. Pressure range:CLASS 150Lb~2500Lb.

• 2. Nominal diameter:NPS 2”~32″.

• 3. Body material：Carbon steel, Stainless steel, Duplex, Alloy steel and special material.

• 4. End connection:FF, RF, RTJ, BW, SW, Hub.

Product features:

• 1. Optional ball type and parabolic type disc.

• 2. Optional bypass valve.

• 3. Optional stem extension design.

• 4. Optional Bellow sealed design.

• 5. Optional forged steel body.
