Description

Design standard:API 599, API 6D

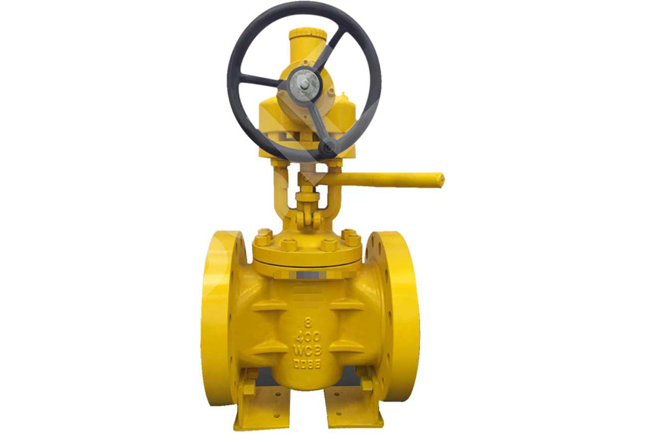

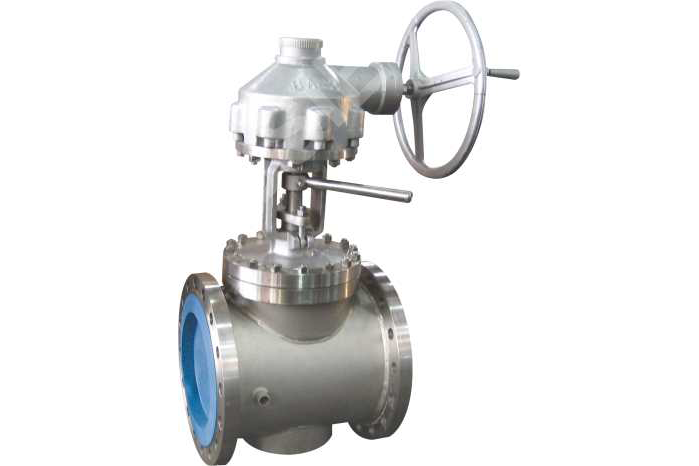

All the Lift Type Plug Valves supplied by SSIE are designed with During opening process, rotates the stem anticlockwise and lift tapered plug moving up and pull the plug sealing surface away from the body seat, the clearance between the body and seals allows free movement without friction. Rotates stem further, with the tilt guide mechanism design, the plug will be turned 90°aligning plug port window to valve body bore that valve is fully opened

Product range:

• 1. Pressure range:CLASS 150Lb~1500Lb.

• 2. Nominal diameter:NPS 2”~36″.

• 3. Body material：Carbon steel, Stainless steel, Duplex, Alloy steel and special material.

• 4. End connection:RF, RTJ, BW.

Product features:

• 1. Orbit lift and rising stem design.

• 2. Bi-directional.
